LDS series 센터링 툴 ㆍ Centering Tool

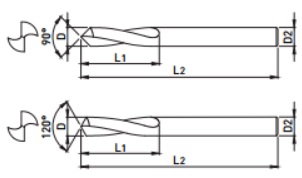

- NC 스포팅 드릴
-
| EDP. No. | D | L1 | L2 | D2 | Point Angle |
|---|---|---|---|---|---|
| LDS030 | 3 | 9 | 50 | 3 | 90˚ |
| LDS030L | 3 | 10 | 100 | 3 | 90˚ |
| LDS030A | 3 | 9 | 50 | 3 | 120˚ |
| LDS040 | 4 | 10 | 50 | 4 | 90˚ |
| LDS040L | 4 | 12 | 100 | 4 | 90˚ |
| LDS040A | 4 | 10 | 50 | 4 | 120˚ |
| LDS050 | 5 | 12 | 50 | 5 | 90˚ |
| LDS050A | 5 | 12 | 50 | 5 | 120˚ |
| LDS060 | 6 | 13 | 60 | 6 | 90˚ |
| LDS060L | 6 | 18 | 110 | 6 | 90˚ |
| LDS060A | 6 | 13 | 60 | 6 | 120˚ |
| LDS080 | 8 | 23 | 70 | 8 | 90˚ |
| LDS080L | 8 | 23 | 150 | 8 | 90˚ |
| LDS080A | 8 | 23 | 70 | 8 | 120˚ |
| LDS100 | 10 | 24 | 80 | 10 | 90˚ |
| LDS100L | 10 | 24 | 150 | 10 | 90˚ |
| LDS100A | 10 | 24 | 80 | 10 | 120˚ |
| LDS120 | 12 | 28 | 80 | 12 | 90˚ |
| LDS120L | 12 | 28 | 150 | 12 | 90˚ |
| LDS120A | 12 | 28 | 80 | 12 | 120˚ |
| LDS160 | 16 | 32 | 90 | 16 | 90˚ |
| LDS160A | 16 | 32 | 90 | 16 | 120˚ |
| LDS200 | 20 | 35 | 100 | 20 | 90˚ |
| LDS200A | 20 | 35 | 100 | 20 | 120˚ |
적용 피삭재
| 탄소강 (S45C, S55C...) ~ HB225 |
합금강 (SCM, SK...) HB225~325 |
프리하든강 (NAK...) HRc30~50 |
열처리강 | 동 | 흑연 | 주철 FCD400. 500~ |
알루미늄 | 스테인리스강 | |
|---|---|---|---|---|---|---|---|---|---|
| ~HRc55 SKD61 | ~HRc55 SKD11 | ||||||||
| ○ | ○ | ○ | ○ | ○ | ○ | ||||
허용공차
| D (mm) | 자루부 |
|---|---|
| ±0.01 | h6 |
