SSDL series 비철가공용드릴 ㆍ 솔리드스파이럴
- 4D / TiN코팅 / 표준 길이
-
- SOLID SPIRAL DRILL LONG
- 비철금속 및 알루미늄 가공에 적합

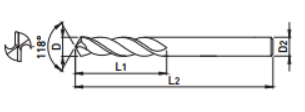

| EDP. No. | D | L1 | L2 |
|---|---|---|---|
| SSDL030 | 3.0 | 42 | 73 |
| SSDL031 | 3.1 | 42 | 73 |
| SSDL032 | 3.2 | 42 | 73 |
| SSDL033 | 3.3 | 42 | 73 |
| SSDL034 | 3.4 | 42 | 73 |
| SSDL035 | 3.5 | 42 | 73 |
| SSDL036 | 3.6 | 45 | 80 |
| SSDL037 | 3.7 | 45 | 80 |
| SSDL038 | 3.8 | 48 | 80 |
| SSDL039 | 3.9 | 50 | 80 |
| SSDL040 | 4.0 | 54 | 85 |
| SSDL041 | 4.1 | 54 | 85 |
| SSDL042 | 4.2 | 54 | 85 |
| SSDL043 | 4.3 | 54 | 85 |
| SSDL044 | 4.4 | 54 | 85 |
| SSDL045 | 4.5 | 54 | 85 |
| SSDL046 | 4.6 | 59 | 90 |
| SSDL047 | 4.7 | 59 | 90 |
| SSDL048 | 4.8 | 59 | 90 |
| SSDL049 | 4.9 | 59 | 90 |
| SSDL050 | 5.0 | 59 | 90 |
| SSDL051 | 5.1 | 63 | 95 |
| SSDL052 | 5.2 | 63 | 95 |
| SSDL053 | 5.3 | 63 | 95 |
| SSDL054 | 5.4 | 63 | 95 |
| SSDL055 | 5.5 | 63 | 95 |
| SSDL056 | 5.6 | 66 | 100 |
| SSDL057 | 5.7 | 66 | 100 |
| SSDL058 | 5.8 | 66 | 100 |
| SSDL059 | 5.9 | 66 | 100 |
| SSDL060 | 6.0 | 66 | 100 |
| SSDL061 | 6.1 | 70 | 105 |
| SSDL062 | 6.2 | 70 | 105 |
| SSDL063 | 6.3 | 70 | 105 |
| SSDL064 | 6.4 | 70 | 105 |
| SSDL065 | 6.5 | 70 | 105 |
| SSDL066 | 6.6 | 73 | 105 |
| SSDL067 | 6.7 | 73 | 105 |
| SSDL068 | 6.8 | 73 | 105 |
| SSDL069 | 6.9 | 73 | 105 |
| SSDL070 | 7.0 | 73 | 105 |
| SSDL071 | 7.1 | 76 | 110 |
| SSDL072 | 7.2 | 76 | 110 |
| SSDL073 | 7.3 | 76 | 110 |
| SSDL074 | 7.4 | 76 | 110 |
| SSDL075 | 7.5 | 76 | 110 |
| SSDL076 | 7.6 | 80 | 115 |
| SSDL077 | 7.7 | 80 | 115 |
| SSDL078 | 7.8 | 80 | 115 |
| SSDL079 | 7.9 | 80 | 115 |
| SSDL080 | 8.0 | 80 | 115 |
| SSDL081 | 8.1 | 85 | 125 |
| SSDL082 | 8.2 | 85 | 125 |
| SSDL083 | 8.3 | 85 | 125 |
| SSDL084 | 8.4 | 85 | 125 |
| SSDL085 | 8.5 | 85 | 125 |
| SSDL086 | 8.6 | 85 | 125 |
| SSDL087 | 8.7 | 85 | 125 |
| SSDL088 | 8.8 | 85 | 125 |
| SSDL089 | 8.9 | 85 | 125 |
| SSDL090 | 9.0 | 85 | 125 |
| SSDL091 | 9.1 | 88 | 130 |
| SSDL092 | 9.2 | 88 | 130 |
| SSDL093 | 9.3 | 88 | 130 |
| SSDL094 | 9.4 | 88 | 130 |
| SSDL095 | 9.5 | 88 | 130 |
| SSDL096 | 9.6 | 90 | 130 |
| SSDL097 | 9.7 | 90 | 130 |
| SSDL098 | 9.8 | 90 | 130 |
| SSDL099 | 9.9 | 90 | 130 |
| SSDL100 | 10.0 | 90 | 130 |
적용 피삭재
| 탄소강 (S45C, S55C...) ~ HB225 |
합금강 (SCM, SK...) HB225~325 |
프리하든강 (NAK...) HRc30~50 |
열처리강 | 동 | 흑연 | 주철 FCD400. 500~ |
알루미늄 | 스테인리스강 | |
|---|---|---|---|---|---|---|---|---|---|
| ~HRc55 SKD61 | ~HRc55 SKD11 | ||||||||
| ○ | ◎ | ||||||||
허용공차
외경
공차 |
1이상 3이하 | 3초과 6이하 | 6초과 10이하 | 10초과 18이하 |
|---|---|---|---|---|
| 인선부(h8) | 0 -14 |
0 -18 |
0 -22 |
0 -27 |
| 생크부(h7) | 0 -10 |
0 -12 |
0 -15 |
0 -18 |
